Non Rotating Wire Rope

19X7 series

Tensile strength:1770-2160mpa
Diameter:3-263mm
Certificate:ISO9001, CCS, ABS, DNV, CE, BV, SGS, ASTM.
Brand：Aulone
Product description: Rotating resistance performance. Preferable soft properties. High breaking force. Favorable anti extrusion properties. Suitable for high-lifting working.
INQUIRY

Features

Rotating resistance wire rope
Preferable soft properties
High breaking force
Favorable anti extrusion properties
Suitable for high-lifting working

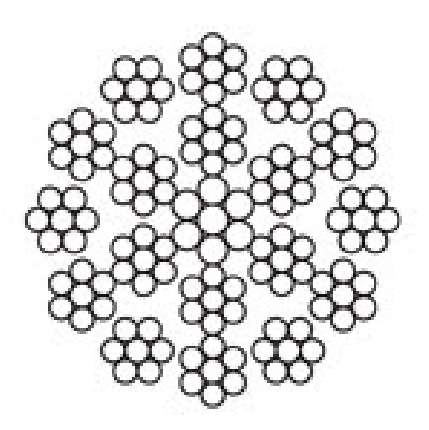

Structure

Design: Bright (ungalvanized), galvanized, plastic coated, 2 layers of strands, regular or Lang lay, right hand or left hand..

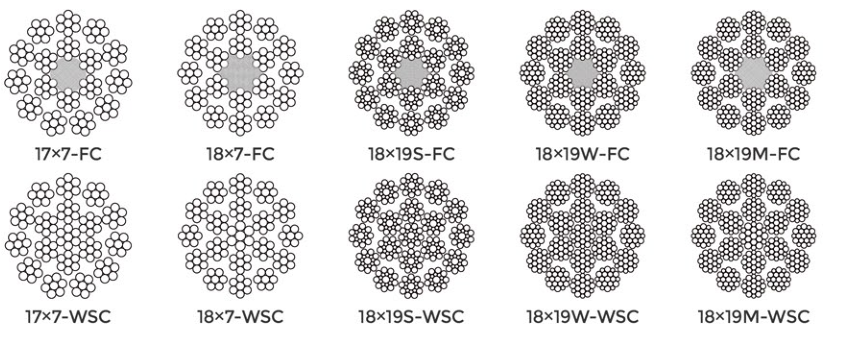

This wire rope construction is available in both galvanised and ungalvanised finish with either ordinary or langs lay. The construction family includes 17X7, 18X7 and 19X7. For further flexibility and other performance characteristics we also supply 32X7, 35X7 and 37X7.

Depending upon your requirement for higher breaking load or better wear characteristics, these wire ropes are available in different finishes and lubrications as well as being available with plastic impregnated.

Applications
Offshore crane rope
Deck crane rope
Pillar crane rope
Whip hoist rope
Main hoist rope
Crane rope

Standard: GB/T 8918. EN12385 available.

Parameters

Diameter (mm)	Approx. weight	Tensile strength (MPa)
		1570	1770	1960	2160
		Minimum breaking load
(mm)	(kg/100m)	(kN)	(kN)	(kN)	(kN)
6	15.5	18.5	20.9	23.1	25.5
7	21.1	25.2	28.4	31.5	34.7
8	27.5	33.0	37.2	41.1	45.3
9	34.8	41.7	47.0	52.1	57.4
10	43.0	51.5	58.1	64.3	70.8
11	52.0	62.3	70.2	77.8	85.7
12	61.9	74.2	83.6	92.6	102
13	72.7	87.0	98.1	109	120
14	84.3	101	114	126	139
16	110	132	149	165	181
18	139	167	188	208	230
20	172	206	232	257	283
22	208	249	281	311	343
24	248	297	334	370	408
26	291	348	392	435	479
28	337	404	455	504	555
30	387	463	523	579	638
32	440	527	594	658	725
36	557	667	752	833	918
40	688	824	929	1030	1130
44	832	997	1120	1240	1370
48	991	1190	1340	1480	1630
52	1160	1390	1570	1740	1920
56	1350	1610	1820	2020	2220
60	1550	1850	2090	2310	2550
