Ship unloader wire rope

6XK36WS-IWRC

Tensile strength:1770-2160mpa
Diameter:3-260mm
Certificate:ISO9001,CCS,ABS
Brand：Aulone
Product description: Abrasion resistance performance. High breaking force. Fatigue resistant performance Improved support of outer strands in service. Improved ton-mile performance
INQUIRY

Rope type:6×K19, 6×K36

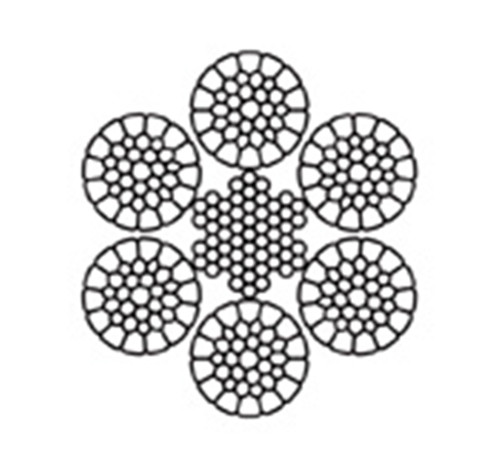

Rope Construction :6×K19S, 6×K26WS, 6×K31WS, 6×K36WS, 6×K41WS

ADVANTAGES
1. Abrasion resistance performance.
2. High breaking force.
3. Fatigue resistant performance
4. Improved support of outer strands in service.
5. Improved ton-mile performance

Application: They can be used as Variable amplitude rope on mobile crane, vessel crane and grab bucket crane. And can be used as hoisting rope on container crane, floating crane, portal crane and steel factory crane etc... Also be applicable to multi-multiplying power system with smaller hoisting height, double coiling block system with matched left-hand and right-hand pairs using for deep hoisting height.

Parameters

Diameter (mm)	Approx. weight (kg/100m)		Tensile strength (MPa)
			1570		1670		1770		1870		1960		2160
			Minimum breaking load (kN)
	FC	WC	FC	WC	FC	WC	FC	WC	FC	WC	FC	WC	FC	WC
12	61.2	67.0	84.3	93.8	89.7	99.8	95.1	106	100	112	105	117	116	129
14	83.3	91	115	128	122	136	129	144	137	152	143	159	158	176
16	109	119	150	167	159	177	169	188	179	199	187	208	206	230
18	138	151	190	211	202	225	214	238	226	251	237	264	261	290
20	170	186	234	261	249	277	264	294	279	310	292	325	322	359
22	206	225	283	315	301	335	320	356	338	376	354	394	390	434
24	245	268	337	375	359	399	380	423	402	447	421	469	464	516
26	287	314	396	440	421	469	446	497	472	525	494	550	545	606
28	333	365	459	511	488	543	518	576	547	608	573	638	632	703
30	382	419	527	586	561	624	594	661	628	698	658	732	725	807
32	435	476	600	667	638	710	676	752	714	795	749	833	825	918
34	491	538	677	753	720	801	763	849	806	897	845	940	931	1040
36	551	603	759	844	807	898	856	952	904	1010	947	1050	1040	1160
38	614	671	846	941	899	1000	950	1060	1010	1120	1060	1170	1160	1290
40	680	744	937	1040	1000	1110	1060	1180	1120	1240	1170	1300	1290	1430
42	750	820	1030	1150	1100	1220	1160	1300	1230	1370	1290	1430	1420	1580
